The applications in Hubler operate on a stage-based system, where each stage represents distinct segments through which data flows. A stage signifies a specific point in the app where data transitions from one segment to another.
The left section of the app interface showcases the different stages. To add a new stage, users can click on the "+" icon located at the bottom left corner of the console. Designating a stage as the home stage is accomplished by clicking on the home button associated with the respective stage. This action establishes it as the starting point of the app.
Users can change the name of the stage by clicking on the edit icon in front of the stage.
Stage Elements:
Data Fetch from API
Copy Stage
Custom Script Executer
API integration in Hubler refers to the capability of the platform to connect and communicate with external systems, applications, or services using APIs (Application Programming Interfaces). API integration allows Hubler to exchange data, functionality, and services with other software or platforms seamlessly.
The data can be either displayed on the front or stored in the backend to be used later.
Data Fetch from API Sections:
Basic Details:
URL: This field is utilized for entering the API's URL.
Method: Use this option to specify the method employed when configuring the API (POST, GET, PUT, PATCH, or DELETE).
Query Parameters: Query parameters serve as placeholders that can be replaced with specific values during runtime. By utilizing query parameters, users can create dynamic and flexible queries that adapt to different contexts or user inputs.
This feature enhances the versatility and customization options within Hubler applications, enabling users to retrieve and manipulate data based on specific criteria or conditions.
Authorization:
Authorization Type: This setting is utilized to configure the authorization details.
No Auth: Select this option when no authorization is required to access the data.
Basic: Choose this option when accessing the data necessitates providing basic API information along with a unique code.
API Key: Opt for this option for a higher level of authorization, where an API key is assigned. The data can be accessed only when the provided key matches the API key.
Bearer Token: This method generates a unique token for each data access request to verify the authenticity of the request. It involves two API calls: the first is a pre-request call to obtain the unique token, and the second is the data access call, where the received token from the first call is provided.
Headers: In Hubler API integration header encompass additional information included in the HTTP request headers when communicating with the Hubler API. These headers contain essential details and instructions for the API server, providing enhanced control and customization of API requests.
Body: In Hubler API integration, the "Body" denotes the data payload included in the HTTP request when communicating with the Hubler API. The request body carries the information or parameters required to execute specific actions or operations. The structure and content of the request body rely on the API endpoint and the intended functionality, typically comprising structured data like JSON or XML adhering to the API's defined schema or format.
Pre-Request: The Pre-Request feature allows for sending a preliminary request to retrieve a token or perform authentication before initiating the data access request.
Response: In Hubler API integration, the "Response" signifies the data provided by the Hubler API server in response to an HTTP request. This data encapsulates the outcome or result of the requested operation or action.
The response typically includes an HTTP status code, which indicates the success or failure of the request. Common status codes include 200 for a successful request, 400 for a client-side error, and 500 for a server-side error.
Response Fields:
Define Success Conditions: Use this option to establish the success condition for the API request.
Assign Values from Response: Utilize this feature to assign values received from the response.
Define Error Message: Employ this functionality to define the error message in the event of a failed API request. It assists in specifying the location and format of the error.
The Copy Stage feature allows users to duplicate or create a copy of an existing stage within a workflow. This capability proves beneficial when replicating a stage's settings, configurations, or actions for similar processes or tasks. By leveraging the Copy Stage feature, users can save time by avoiding manual recreation of stages, as the copied stage retains the same properties, configurations, actions, rules, and conditions as the original stage.

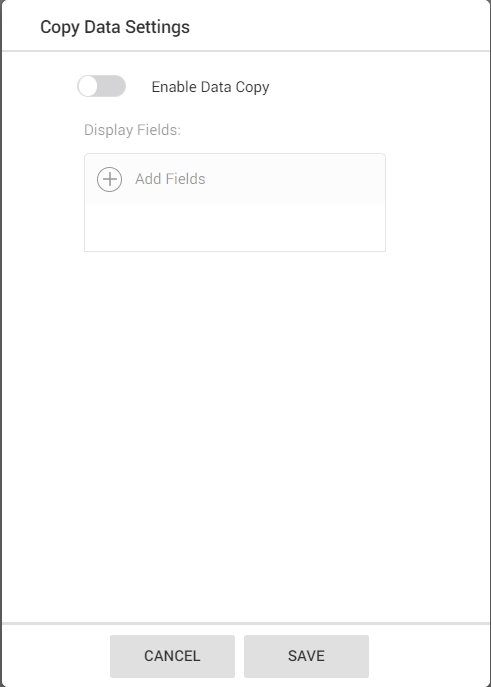

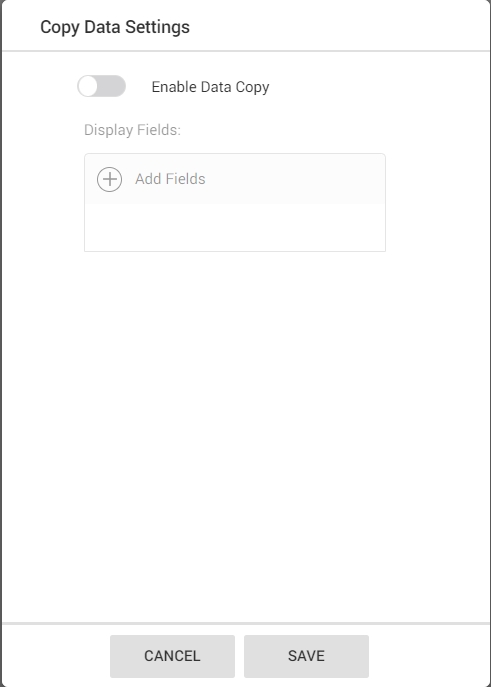

Copy Data Settings:
Enable Data Copy (Toggle): This option enables the data copy functionality of fields from one stage to another within Hubler.
Display Fields: This option helps to define the fields that needs to be copied from the source stage.
The Custom Script Executer is a powerful feature that enables the execution of custom scripts within the application. It provides a platform for users to incorporate their own code or scripts to perform specific actions or manipulate data based on their unique requirements.
With the Custom Script Executer, users have the flexibility to enhance the functionality of the application by writing and executing custom scripts. This capability allows for advanced customization and integration with external systems or services.
By leveraging the Custom Script Executer, users can extend the capabilities of Hubler to meet their specific business needs. They can automate complex processes, perform calculations, integrate with external APIs, or implement custom business logic using their preferred programming language or scripting technology.

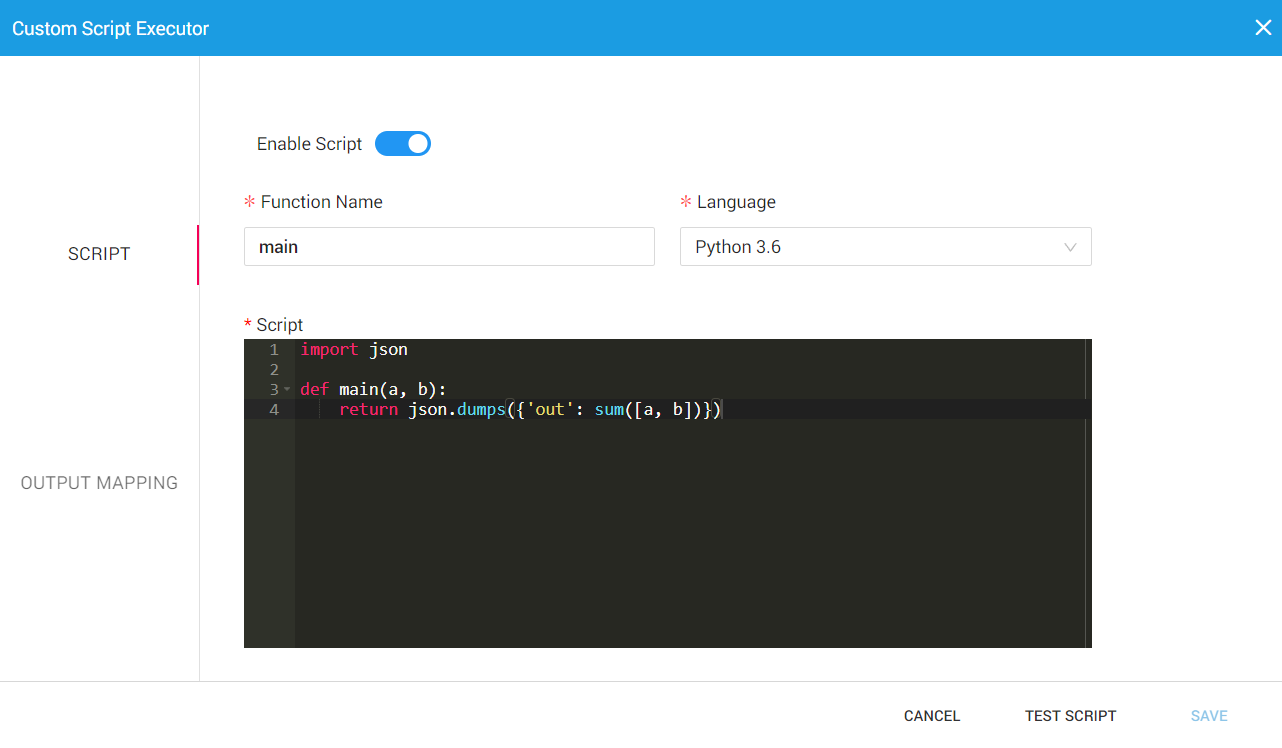

Custom Script Executer Options
Enable Script: This option enables the use to custom script as per the business needs.
Function Name: This is to define the name of the script to be used in different functionalities.
Language: This option is to define the language of the script used to execute the customized functionality.
Script: This section helps to write the script code for the customized functionality.
